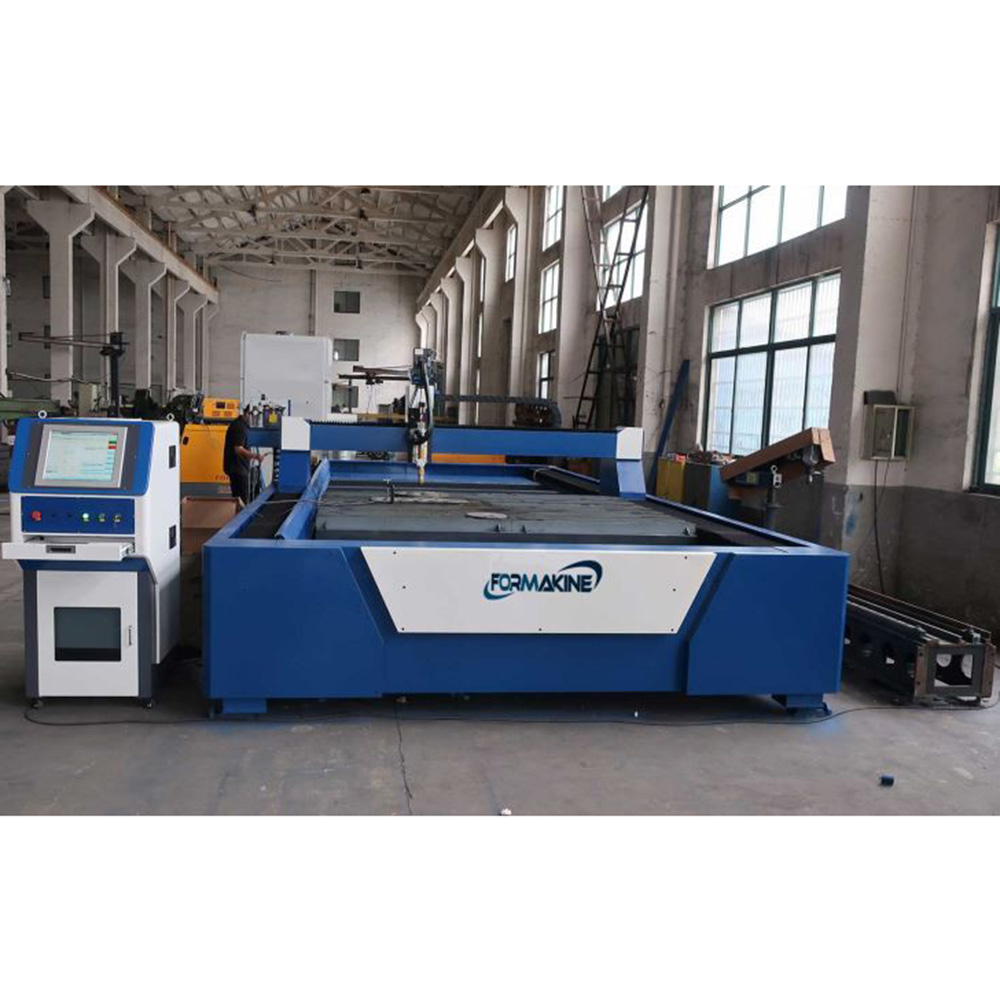

CNC Plasma Cutting Machine
Product Features
1. The thick-walled square tube is integrally welded, and the artificial aging bed body is strong, non-deformable, and good in rigidity.
2. The overall use of Panasonic servo motor is equipped with Taiwan servo reducer and high-precision gear rack to ensure its low noise, smooth and accurate coordinate movement performance.
3. Adopt domestic Huayuan power supply with high-sensitivity arc voltage height adjuster, automatically adjust and select the best cutting distance to ensure the precision cutting of the workpiece.
Application
It is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy,aerospace, boiler and pressure vessel, locomotive etc.It is suitable for all kinds of metal materials such as steel, copper,aluminum and stainless steel can be processed. Applies for aluminum plate, stainless steel, galvanized sheet, White Steel plate,Titanium plates, and so on like the sheet metal.
Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry.
Technical Specifications
| Model | FM1325/1530 |
| Lathe Bed | Steel Structure With Water Sink |
| Reposition Precision | 0.05mm |
| Processing Precision | 0.1mm |
| Maximum Cutting Speed | 1500mm/Min (According To Material) |
| Torch Height Control Mode | Automatically |
| Cutting Thickness | 0-30mm |
| Plasma Power Supply | Hyperthermia Plasma Power Made In USA 65A |
| Motors | Servo |
| Rail | Imported Square Rail |
| Software | Start Fire |
