Semi Automatic Hydraulic Press Brake
Product Introduction
1. Main Features
Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
Mechanical synchronous meahanism and the complex compensation are designed so as to raise the workpieces precision.
The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by E21.
Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
2. Hydraulic System
Hydraulic system is from Bosch -Rexroth,Germany.
Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
3. Safety Equipment Of Metal Sheet Press Brake
Safety Standards(2006/42/EC):
● EN 12622:2009 + A1:2013
● EN ISO 12100:2010
● EN 60204-1:2006+A1:2009
● Front finger Protection(Safety light curtain)
● South Korea Kacon Foot Switch(Level 4 of safety)
● Back metal safe fence with CE standards
● Safety relay with Monitor the pedal switch and safety protection
4. Controller Of Press Brake
● Monochrome LCD Box Panel.
● Integral factor programmable freely
● Automatic positioning control
● Spindle allowance offset
● Internal time relay
● Stock counter
● Backgauge position display, resolution in 0.05mm
5. Ram And Die(ONE SET OF BENDING DIE IS FREE)
● Up punching dies will be cut into section as the requirement as below
● Fractional set:25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
● The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation.
● The Machine By E21 NC Control With the point of programming, can automatically adjustable the backgauge size and bending depth;
Picture Display
Product Advantage

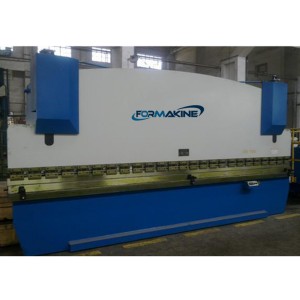

The newly designed hydraulic press brake has been finished and ready to load.
From configuration to performance can be compared with Europe and the United States.
Streamlined design, overall welded and processed structure with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
The main configuration of the machine comes from Germany, which is famous for its excellent quality, leading technology and exquisite workmanship.
The high-precision Grating Scale is installed on C-type frame, so as to avoid the influence of the deformation of the fuselage on the accuracy of bending during bending.
Why is grating scare function?
It is a measurement feedback device that works with the optical principle of a grating.
The scale displacement sensor is often used in closed-loop servo systems of the machine tools and can be used as a linear displacement or angular displacement detection. The measured output signal is a digital pulse, with a large detection range, high detection accuracy, and fast response.
In the machine it is often used to detect the coordinates of the tool and the workpiece to observe and track the error of the pass, so as to compensate for the motion error of the machine.
Integrated Hydraulic System From REXROTH, Germany decreased the pipe connections, oil leakage, and increases the stability and overall beautifies.
Also can reduced noise: the particular installation choices allow obtaining especially moderate noise levels both on machines of average capacity.
Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
The Hydraulic System Is Made In Compliance With Current Regulations (Directive 98/37 EC).
REXROTH is not only one of the world's top 100 companies, but also one of the world's leading high-tech companies. For more than 50 years, the Bosch Rexroth Group's business unit has been dedicated to the development of high-tech products in the professional hydraulic transmission field. Its products and brands have earned worldwide reputation. Rexroth's products are unique because in the world market, there are currently no other brands that can provide customers with all drive and control technologies, specialization and integration.
Product Accessories
Controller : Delem DA66T From Holland
17 inch TFT true color LCD display; 800*600 dot matrix, 16 bits; memory capacity 128MB; product and mold storage capacity 64MB; diagnostic program; built-in PLC; HSB module; graphical mode configuration; 2D graphic display .
General technical specifications: real-time Windows embedded operating system; stable, multi-tasking environment; support for sudden power failure; compatible brand-new series of modules; multi-machine linkage function. Programming function: Product naming of numbers and letters, up to 25 characters; 2D graphics programming, 3D display; 2D/3D bending process automatic calculation;
Graphics programming mode under the process of exchange and movement; front support material display; a page programming table; product and mold graphic display selection; set the axis movement speed; free set of material parameters; program repetition times, maximum 9,999; Step, maximum 99; repetitions per step, maximum 99;
It is automatic arc calculation; bending radius; self-learning bending compensation table; angle correction database. Auxiliary functions: machine working time + program count; Error message system; Diagnostic program; Multilingual selection; Help text, online help; Handwheel moves all axes; Y and auxiliary axis teaching; program counting; user-specific application support; built-in PLC. Interface: HSB module, up to 8 modules; DNC-RS232C; network interface (100Mb/10Mb); USB interface 2; Enhanced features: Wordpad (Emailpad); Email (POP3); Web Browser; Remote Terminal; Remote Diagnostics; Analysis Software Tools; PDF Tools
The Backgauge Is With Digital AC Servo Motor Drive, It Can Control Multiple Backgauge Axis. And Up To 8+1 Axis
There is also equipped with the encoder, and the digital display system makes the position of the rear stopper and the upper slider show more accurate, thus further improving the working accuracy of the machine.
The whole backgauge is stable, elegant appearance.
The Electric Appliance Is Schneider From French
Schneider Electric Co., Ltd. is a global leader in energy efficiency management. Its main businesses include power, industrial automation, infrastructure, energy efficiency, and energy, etc.
Loading And Standard Exporting Packaging Of FORMAKINE
1. Inner machine, it is packaged in moisture proof film.
2. Ground fixed bolt to confirm steady and avoid destroy.
