Light Weight CNC Gantry Machining Center

Short Description:

The gantry processing center is a CNC machine tool for the worktable movement. When the worktable is moved, a DC or AC motor is used to carry out the X axial transmission, and the transmission form corresponds to different data according to the different length.


Product Detail

Product Tags

Product Description

Gantry Vertical Machining Center
Vertical Gantry Machine Tool
The gantry processing center is a CNC machine tool for the worktable movement. When the worktable is moved, a DC or AC motor is used to carry out the X axial transmission, and the transmission form corresponds to different data according to the different length. When the moving length of the worktable is 8M, the transmission mode of double teeth gear is adopted.
The worktable of gantry processing center is two directions of horizontal or vertical line, which can process large workpieces. The length of the X axial guide is two times the length of the worktable, and the length of the protective cover on both sides is added, and the machine should take up a large area of the work site.
The worktable mobile gantry processing center has a lot of savings. There are two kinds of movement and friction in its worktable, which are two kinds of moving and static. The movement features are uniform and low speed without crawling, the positioning accuracy is high, the traction force, the accuracy of the maintenance, the long service life, the simple maintenance and so on.
The numerical control gantry machining center, which can precisely process parts, has many advantages. The most obvious is its accuracy in processing, because of its high accuracy, it can even make a difference in such fields as aerospace. And it can collect many functions in one device, so it also has many kinds of technological means. In addition, it is widely used, and it can also process workpieces with complex shapes, which can not be realized by many common equipment. By contrast, it is much more efficient than ordinary equipment.

Main Application Areas

Automobile manufacturing, spare parts processing;
Toy industry, parts processing and molding
Hardware and mechanical parts processing and rapid prototyping
Spare parts processing and rapid prototyping for electronic and electrical industry
Rapid prototyping and processing of building materials, ceramics and hardware industry
Gantry CNC Machinng Center is mainly used for processing large parts, for the platform, hole and other cavity complex surface professional processing.
The Gantry CNC machine tool center has different forms of milling heads, so once the workpiece is clamped, the machining of the five faces of the workpiece will be finished automatically. For large workpiece (width, length, weight) processing, according to the situation to choose different models to achieve processing.

Main Machined Parts

General type
Light industry
Aviation Industry
Boating Industry
Metallurgy
Instruments and Apparatus
Electric appliance
Stainless Steel Products
Steel structure building
Architectural decoration
Carpentry
Plastic
Aluminium parts
All general-purpose machine parts

Technical Specifications

TECHNICAL DATA FM10 FM1120 FM13 FM15 FM18 FM22(C) FM25
Classify 12/14/16 20 30/35 20/30/40 25/30/35 30/40/50/60 40/50/60
Workbench Length(MM) 1.4/1.6/1.8 2 3/3.5 2/3/4 2.5/3/3.5 3/4/5/6 4/5/6
Workbench Width(MM) 900 900 1000 1200 1600 1800 2300
Process Distance In X-Axis(MM) 1.2/1.4/1.6 3/3.5 3/3.5 2/3/4 2.5/3/3.5 3/4/5/6 4/5/6
Process Distance In Y-Axis(MM) 1100 1100 1400 1650 2000 2200 2700
Process Distance In Z-Axis(MM) 800 800 800 800 1000 1000(1250) 1000(1250)
Gantry Width 1150 1150 1400 1650 2000 2200 2700
Worktable To Spindle Nose(MM) 150-950 60-860 70-870 115-915 250-1250 250-1250 260-1260
Max. Loading Weight(KG) 1.5 2 5/7 3/5/7 5/6/7 6/10/12/15 15/18
T-Groove Width/Spacing(MM) 7*22-125 7*22-150 7*22-150 7*22-170 9*22-180 9*22-180 9*22-180
Range Of Spindle Speed(RPM) BT50-190-6000 BT50-190-6000 BT50-190-6000 BT50-190-6000 BT50-190-6000 BT50-200-6000 BT50-200-6000
X-Motor On-Link Mode Direct Connection Belt 1:2.5Belt 1:2.5Belt 1:2.5Belt 1:2.5Belt 1:2.5Belt
YZ-Motor On-Link Mode Direct Connection Direct Connection Direct Connection 1:2.5Belt 1:2.5Belt 1:2.5Belt 1:2.5Belt
X-Axis Ball Screw Specification 5010 6310 8016 6310/8610 6316/8016/8016 8016 8016
YZ-Axis Ball Screw Specification 5010 5010 5010 5010 Y6310/Z5010 Y6310/Z5010 Y6310/Z5010
X-Axis Line Guide Specification(MM) 45PIN Roller 45PIN Roller 45PIN Roller 55PIN Roller 55PIN Roller 55PIN Roller 55PIN Roller
Y-Axis Line Guide Specification(MM) 45PIN Roller 45PIN Roller 45PIN Roller 55PIN Roller 55PIN Roller 55PIN Roller 55PIN Roller
Z-Axis Line Guide Specification(MM) Rectangular Rail 45PIN Roller Rectangular Rail
Principal Axis Motor(KW) 18.5 22 22 22 26 26 26
Gantry Weight(T) 13-14 15 22/26 26/29/31 28/31/33 36/42/48/55 50/58/66

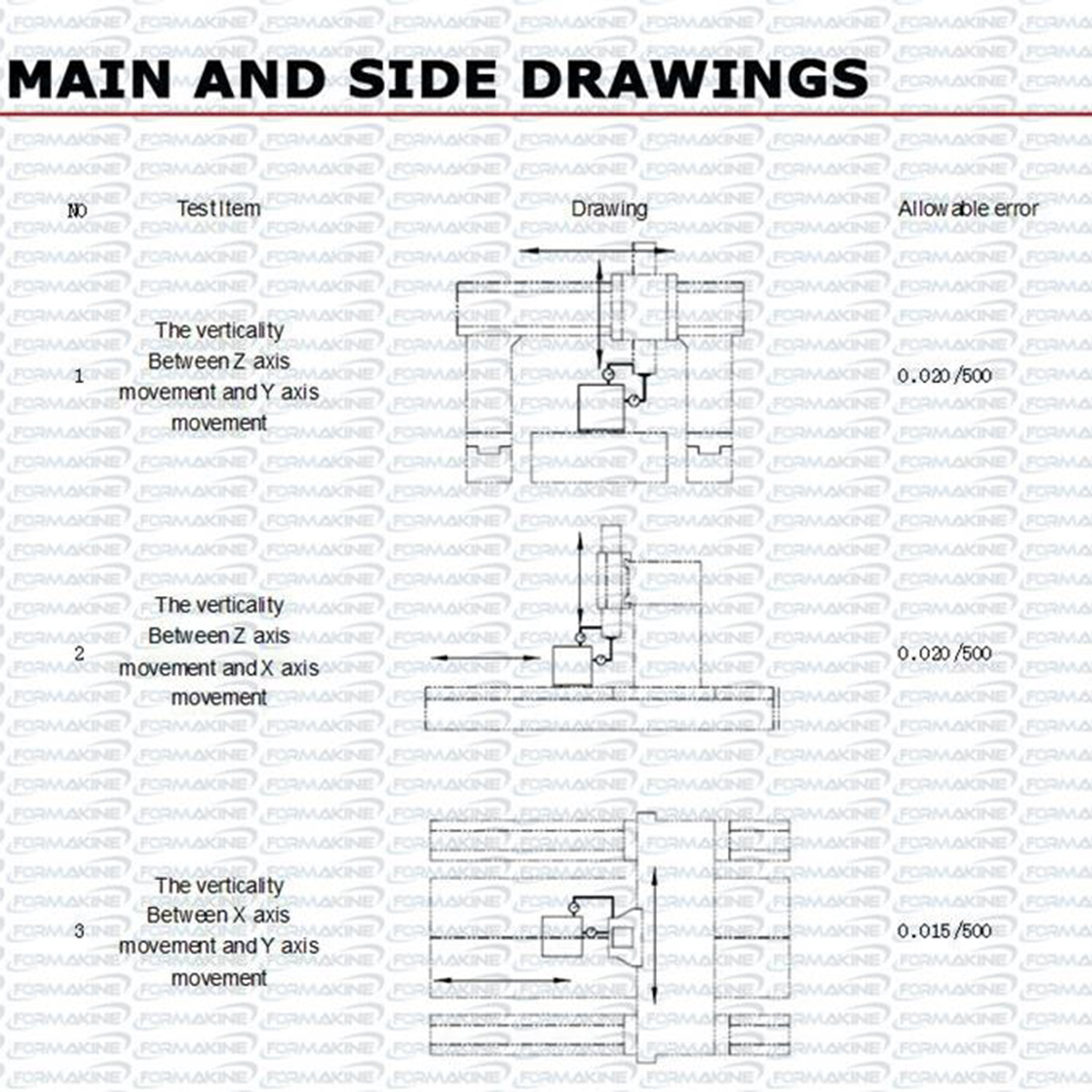

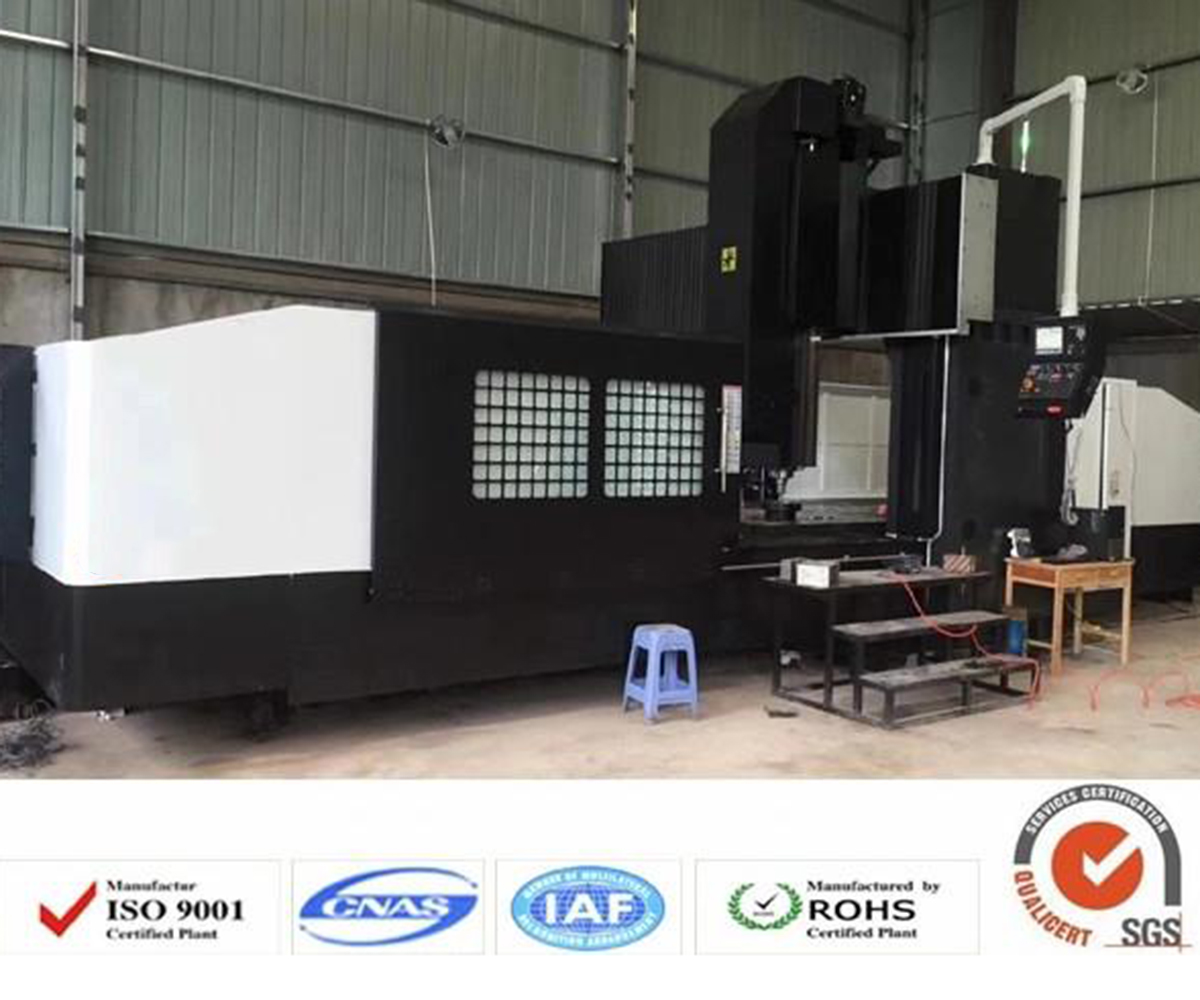

Picture Display

Our Factory

Light Weight CNC Gantry Machining Center

Packing & Shipping

Light Weight CNC Gantry Machining Center
