Automatic CNC Shearing Machine
Performance Profile
1, The machine is fitted with CNC controller special for shearing machines.
2, The position of back gauge is displayed in real-time manner.
3, Multi-step programming function is available and the back gauge is able for automatic oepration and continuous positioning, to achieve an automatic adjustment for position of back gauge.
4, It is provided with counting function for shearing, to display the shearing numbers in a real-time manner,able for power-failure memory of position of rear stopper, procedures, and parameters.
5, Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision processing.
Technical Parameters
| Model (QC12Y/K) | Shear Size (T*W) (Mm) | Shear Angle (°) | Storkes (Min-1) | Back Gauge Range (Mm) | Main Motor (Kw) | L * W * H (Mm) |
| 4*2500 | 4*2500 | 1.5 | 18 | 20-500 | 4 | 3200*1600*1500 |
| 4*3200 | 4*3200 | 1.5 | 14 | 20-600 | 5.5 | 3900*1650*1620 |
| 4*4000 | 4*4000 | 1.5 | 12 | 20-600 | 5.5 | 4700*1900*1800 |
| 4*5000 | 4*5000 | 1.5 | 10 | 20-600 | 7.5 | 5700*2100*2200 |
| 6*2500 | 6*2500 | 1.5 | 18 | 20-600 | 7.5 | 3200*1650*1620 |
| 6*3200 | 6*3200 | 1.5 | 14 | 20-600 | 7.5 | 3900*1650*1620 |
| 6*4000 | 6*4000 | 1.5 | 12 | 20-600 | 7.5 | 4700*1850*1700 |
| 6*6000 | 6*6000 | 1.5 | 8 | 20-600 | 11 | 6700*2200*2200 |
| 8*2500 | 8*2500 | 1.5 | 14 | 20-600 | 7.5 | 3200*1650*1620 |
| 8*3200 | 8*3200 | 1.5 | 12 | 20-600 | 11 | 4000*1650*1620 |
| 8*4000 | 8*4000 | 1.5 | 10 | 20-600 | 11 | 4480*1800*1700 |
| 8*5000 | 8*5000 | 1.5 | 8 | 20-600 | 11 | 5700*2250*2310 |
| 10*2500 | 10*2500 | 1.5 | 10 | 20-600 | 11 | 3200*1800*1700 |
| 10*3200 | 10*3200 | 1.5 | 10 | 20-600 | 11 | 3900*1950*1900 |
| 10*4000 | 10*4000 | 1.5 | 8 | 20-600 | 18.5 | 4700*2200*2100 |
| 10*6000 | 10*6000 | 1.5 | 6 | 20-600 | 18.5 | 6700*2500*2450 |
| 12*2500 | 12*2500 | 1°40′ | 11 | 20-600 | 15 | 3200*2060*1960 |
| 12*3200 | 12*3200 | 1°40′ | 10 | 20-600 | 18.5 | 3900*2127*2100 |
| 12*4000 | 12*4000 | 1.75 | 8 | 20-600 | 18.5 | 4700*2250*2100 |

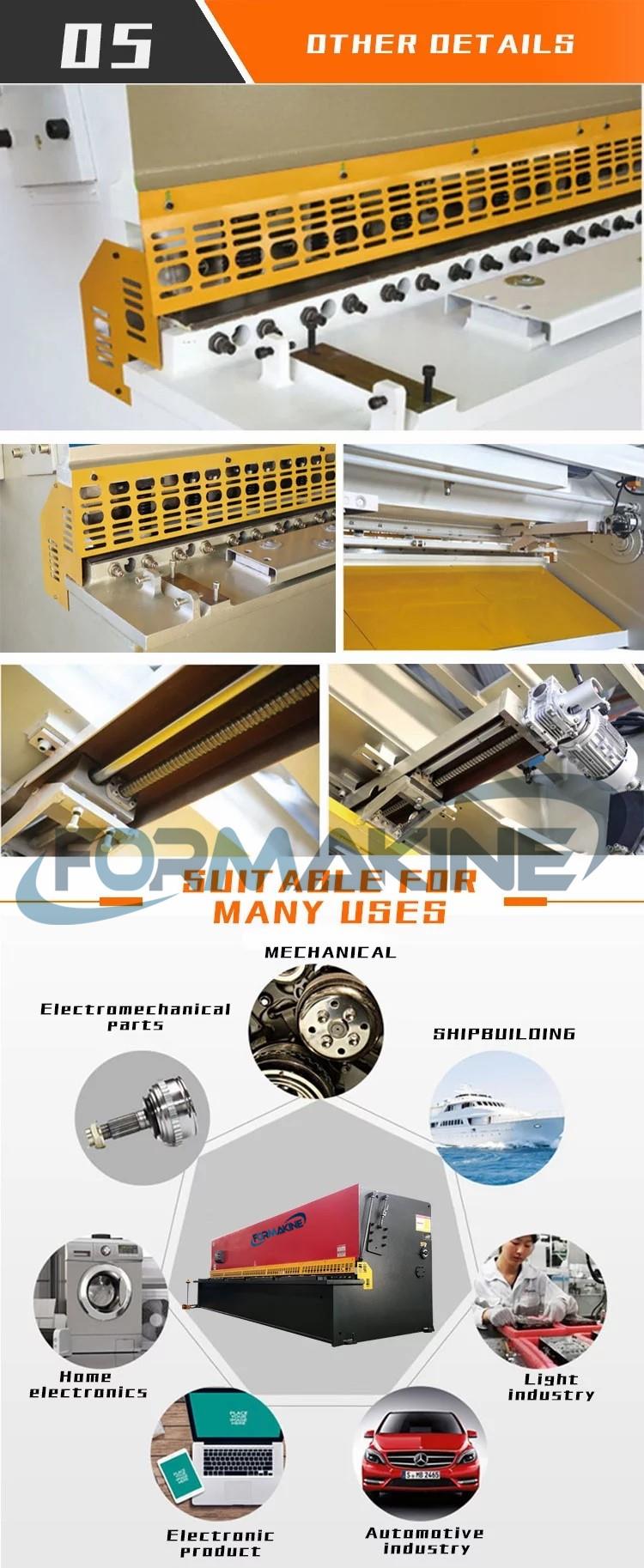

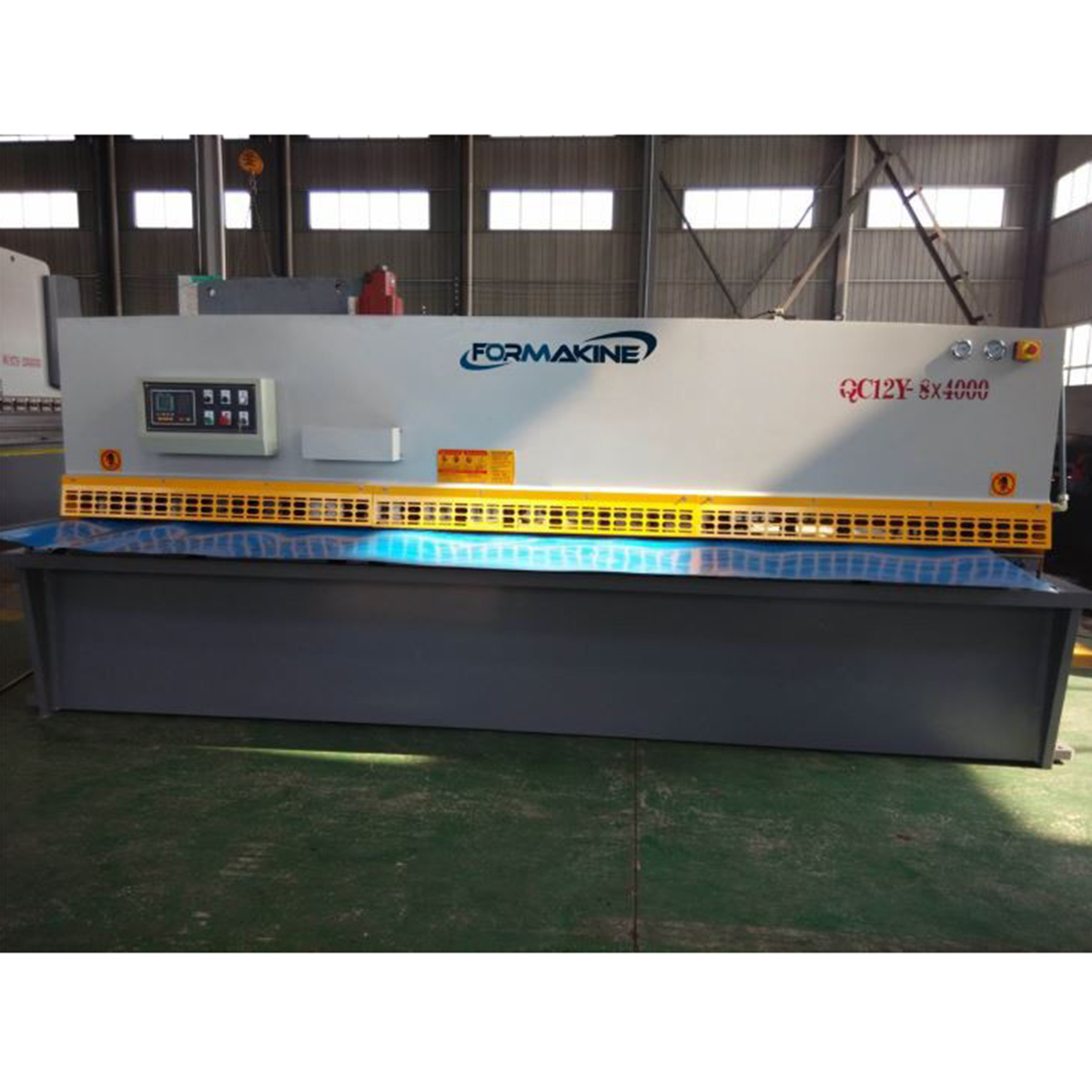

Picture Display
