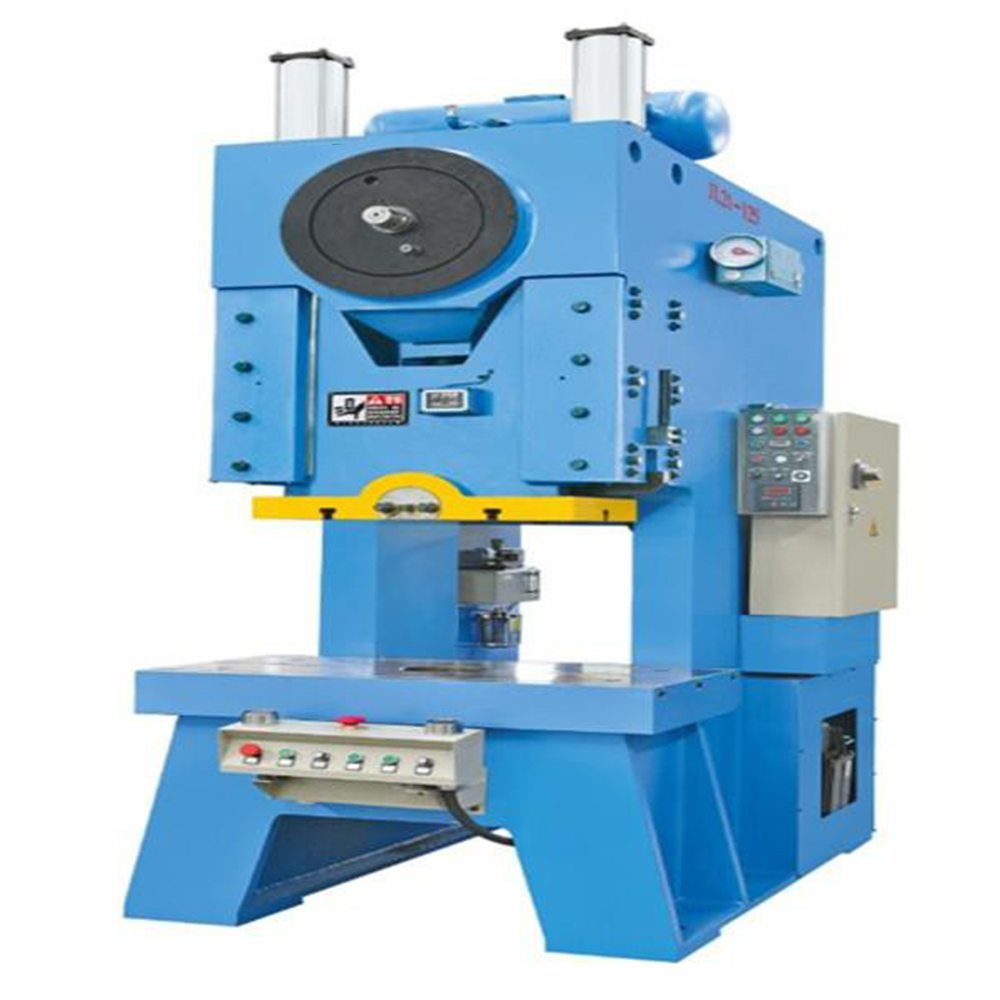

JL21 Open Back Adjustable Stroke Press
Product Features
JL21 Series C Frame Adjustable Stroke Power Press
8-Step Variable Stroke Lengths
JL21 Series C-frame power press with adjustable stroke
a whole steel welded frame, high rigidity and less deformation, ensuring the capacity for bearing heavy load;
cast structure and eight-side long rectangle guides, ensuring high moving precision and high accuracy;
The press has adjustable stroke as standard providing eight different lengths, in order to meet the punch processing for various dies.
The machine adopts pneumatic combined friction clutch-brake, with reliable safety, flexible action and long service life;
Hydraulic overload protection device is equipped, offering convenient maintenance and high sensitivity in effectively protecting against overload;
The machine adopts automatic oil lubrication system to ensure lubricating with timing and rations;
The adjustment for die-setting height is motorized and a digital indicator for die-setting height is equipped;
The crankshaft is arranged longitudinally, and the driving gears are submerged in the oil, as a result, the press machine has low noise and long service life;
The machine adopts pneumatic balance cylinders to balance the weight of slide and upper die, to ensure the press moving stably;
The electrical system is controlled by PLC, and main electrical components are famous brand’s, ensuring high reliability and good adaptability.
Technical Specifications
| Serial Number | Names | Unit |
Specifications |
|
| JL21-45A | JL21-63A | |||
| 1 | Nominal Capacity | KN | 450 | 630 |
| 2 | Nominal Capacity Stroke | Mm | 4 | 4 |
| 3 | Stroke Of Slide | Mm | 11.5-110 | 12.5-120 |
| 4 | Strokes | SPM | 60-100 | 50-80 |
| 5 | Max. Permissible EngagingNumber Of Clutch In Intermittent Strokes(Per Minute) | SPM | 24 | 24 |
| 6 | Max. Die Set Height | Mm | 290 | 300 |
| 7 | Die Height Adjustment | Mm | 70 | 80 |
| 8 | Size Of Table(FB X LR) | Mm | 450X800 | 500X850 |
| 9 | Thickness Of Table | Mm | 80 | 90 |
| 10 | Size Of Opening In Table | Mm | Φ110 | Φ125 |
| 11 | Bottom Size Of Slide (FB X LR) | Mm | 300X500 | 350X600 |
| 12 | Hole For Punch Shank (Diameter XDepth) | Mm | Φ50X60 | Φ50X60 |
| 13 | Distance Between Uprights | Mm | 510 | 570 |
| 14 | Overalldimensions (LRx FBx H) | Mm | 1000X1330X2650 | 1145X1550X2870 |
| 15 | Main Motor(Power) | KW | 5.5 | 7.5 |
| 16 | Air Pressure | MPa | 0.5 | 0.5 |
| 17 | Total Weight (Approximately) | Kg | 4200 | 6200 |
| Serial Number | Names | Unit |
Specifications |
|
| JL21-100A | JL21-125 | |||
| 1 | Nominal Capacity | KN | 1000 | 1250 |
| 2 | Nominal Capacity Stroke | Mm | 5 | 5 |
| 3 | Stroke Of Slide | Mm | 15-140 | 15-140 |
| 4 | Strokes | SPM | 45-65 | 42-60 |
| 5 | Max. Permissible EngagingNumber Of Clutch In Intermittent Strokes(Per Minute) | SPM | 24 | 24 |
| 6 | Max. Die Set Height | Mm | 360 | 400 |
| 7 | Die Height Adjustment | Mm | 90 | 90 |
| 8 | Size Of Table(FB X LR) | Mm | 630X1000 | 630X1100 |
| 9 | Thickness Of Table | Mm | 125 | 150 |
| 10 | Size Of Opening In Table | Mm | Φ125 | Φ140 |
| 11 | Bottom Size Of Slide (FB X LR) | Mm | 400X700 | 400X700 |
| 12 | Hole For Punch Shank (Diameter XDepth) | Mm | Φ60x80 | Φ60x80 |
| 13 | Distance Between Uprights | Mm | 570 | 600 |
| 14 | Overalldimensions (LRx FBx H) | Mm | 1320X1760X3080 | 1400X1860X3150 |
| 15 | Main Motor(Power) | KW | 11 | 15 |
| 16 | Air Pressure | MPa | 0.5 | 0.5 |
| 17 | Total Weight (Approximately) | Kg | 9200 | 10500 |
Picture Display
Main Components List
| Dual Solenoid Valve For Clutch Unit | Made By TACO(Japan) |
| Overload Air Pump | Made By KINGAIR(Taiwan) |
| Automatic Grease Pump | Made By Lube |
| Programmable Logic Controller | Made By OMRON |
| Main Electrical Components | Made By TELEMECANIQUE |
| Main Pneumatic Components | Made By SMC(Japan) |
| Main Seal Rings | Made In Taiwan |
| Main Speed-Variable Motor | Made In China |
| Pneumatic Clutch-Brake | Made By OMPI (Italy) |
| Photo Electric Protector(Optional) | Made In China |
