H Frame Air Conditioner High Speed Fin Press
Product Features
Fully-Automatic Air-Conditioner Fin Press Machine
The Fin Press Line Is An Automatic Fin Production Line Based On The Latest Technology.
The Fin Press Line Consists Of Aluminum Foil Decoiling Mechanism (Photo-Electric Automatic Decoiling), Aluminum Foil Protection Device, Aluminum Foil Oiling Device,Single And Double Jump Latest
Lownoise High Speed Precision Press Machine, High Speed Precision Fin Mold, Latest Guide Bar Type Fin Stacking Device, W
aste Material Collection Device,
And Electrical Control System With HMI.
The Fin Press Line Can Be Used To Produce The Following Fins:
Φ5*19.5*11.2*(6-24)R. / Φ7*21.0*12.7 Or 20.5*12.7(12-24)R. / Φ7.94*22.0*19.05*(12-18)R.
Φ9.52*25.4*22.0or25.0*21.65*(12-18)R. / Φ10.2*20.0*15.5*(12-24)R.
Φ12.7*31.75*27.5*(6-12)R.
Φ15.88*38.0*32.91 Or 38.1*22.2(6-12)R.
Φ19.4*50.8*38.1(4-8)R.
Φ20*34.0*29.5*(6-12)R.Φ25*(4-6)R.

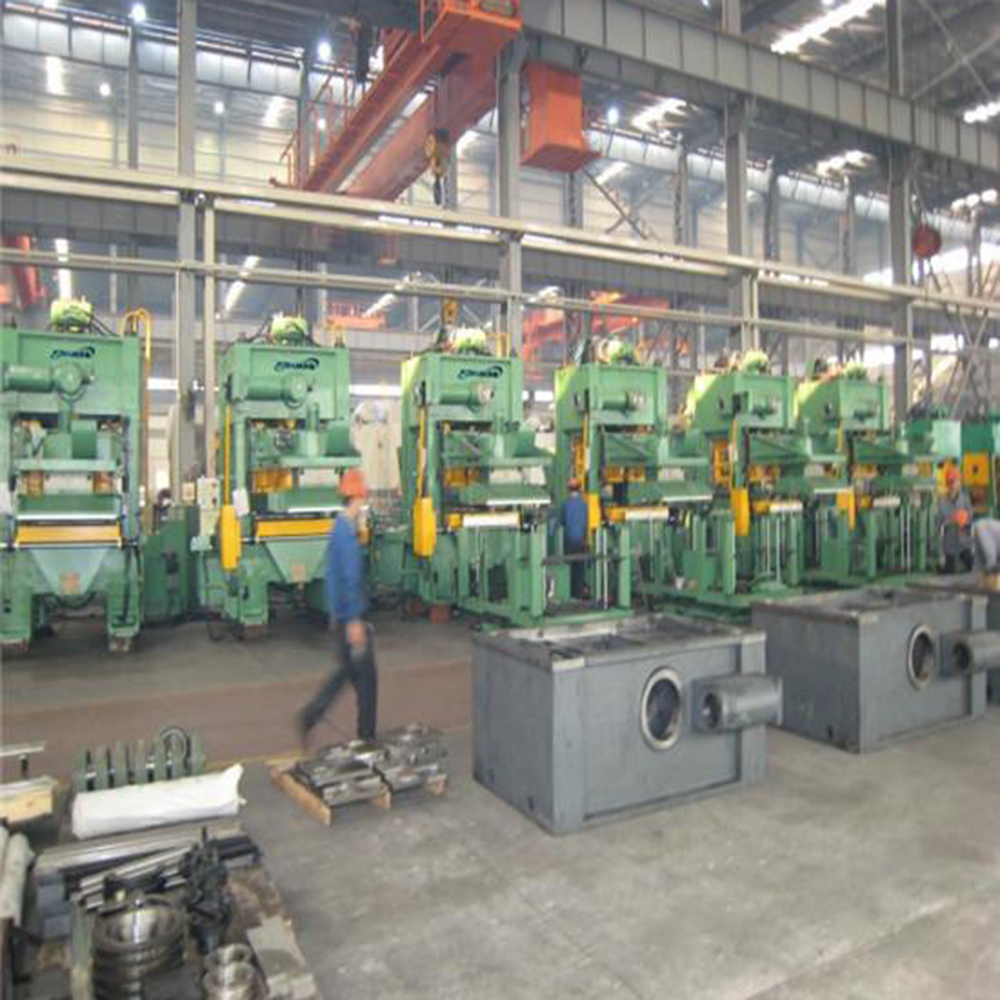

Picture Display
Detailed Introduction
1 Fin Press Specifications
Type: H-Type press，single crank
Capacity: 4500KN
Strokes per minute: 150-300 SPM
Stroke of Slide: 40mm
Adjustment of die set Height: 50mm
Slide lifting Height: 80mm
Die Height: 260-310mm
Size of Table: 770X1300X130mm（L*W*T）
Bottom Size of Slide: 720×740mm (L*W)
Material feeding length: 0-80mm
Fin type: according to customer’s drawing
The machine will have primary feeding system, photo sensor and die change trolley
2 Decoiler Specifications
Type: Inner-distended Type
Material: Aluminum coil
2.3 Max. outer diameter o coil mounting f coil: Φ1100m
2.4 Inner diameter of coil: Φ150±5mm
2.5 Max. Width of material: 400mm
2.6 Coil mounting orientation: on the same direction of the operator’s panel
2.7 Uncoiling Sensors—to control the decoiler running/stopping
Material Detecting Sensors—to stop the fin press line when the aluminum material is finish.
3 Oil tank
3.1 Lubrication Type: Oil-bathed Tank Type, with oil-spray inside the punch area.
3.2 Max. Width of material: 400mm
3.3 Conductor Type: Material Bolts-guided Type
3.4 Oil Detection Sensors: To display oil amount
3.5 Material Suppression: suppressed by cotton felt
4 Fin sucking unit
4.1 Sucking Type: fin-sucked automatically by vacuum air
4.2 Sucking length: 500mm
4.3 Control Type: the sucking door is driven by air-cylinders, and the sucking force is adjusted by the mean of a converter.
4.4 Sucking Plate Material: Aluminum plate with grooves
4.5 Adjustment orientation of sucking plate: the plate can be adjusted on up-down, left-right and front-back directions.
4.6 Material knock-down system: With 2 wires fin knock down system.
5 Stacker Unit
5.1 Stacker Type: Dual-seat L-R moveable, manual
5.2 Fin Collecting Height: 720mm
5.3 Length of Collecting Fins: 0-500 adjustable
5.4 Size of Collecting Plate: W400 x L500
6 Electrical System
6.1 Type: Electrical Station Box, Movable Operator’s panel
6.2 Power Voltage: 380V, 50HZ, 3PHASE
6.3 Control Circuit Voltage: 220V, 50HZ, 1PHASE
6.4 Cross Cutting: count periodically, electrical controlled cylinder(control the length of fins)
6.5 Program Change System: changeable for 2P to 1P
6.6 Stow-stopping Circuit: count periodically
6.7 Air-pressure requested: 5Kg/cm2（+10%）
6.8 Air consumption: 700l/min
6.9 In case of material being finish, or stacker being fault, lubrication being fault, the fin press will stop running automatically.
6.10 The faults content will be indicated on touch screen
