C Frame HVAC High Speed Aluminum Fin Press
Product Features
63 Ton C Frame High Speed Fin Press Production Line With Speed 200-300SPM
For Air Conditioning, Radiator, Heat Exchanger, Actually Running At 230SPM, 250SPM
Main Structure Features
Type: JL21-63C, C-Frame
Capacity: 630KN
Strokes Per Minute: 150-250 Spm
Stroke Of Slide: 40mm
Die Height Adjustment: 80mm
Max. Die Set Height: 290mm
Bolster Area (LR X FB X Thickness): 850x580x110mm
There Will Be 1 Additional Working Table, The Dimension Subject To Mould Supplier’s Confirmation.
Bolster Area: (LR X FB): 600x350mm
Fin Pattern: The Buyer Supply The Drawing

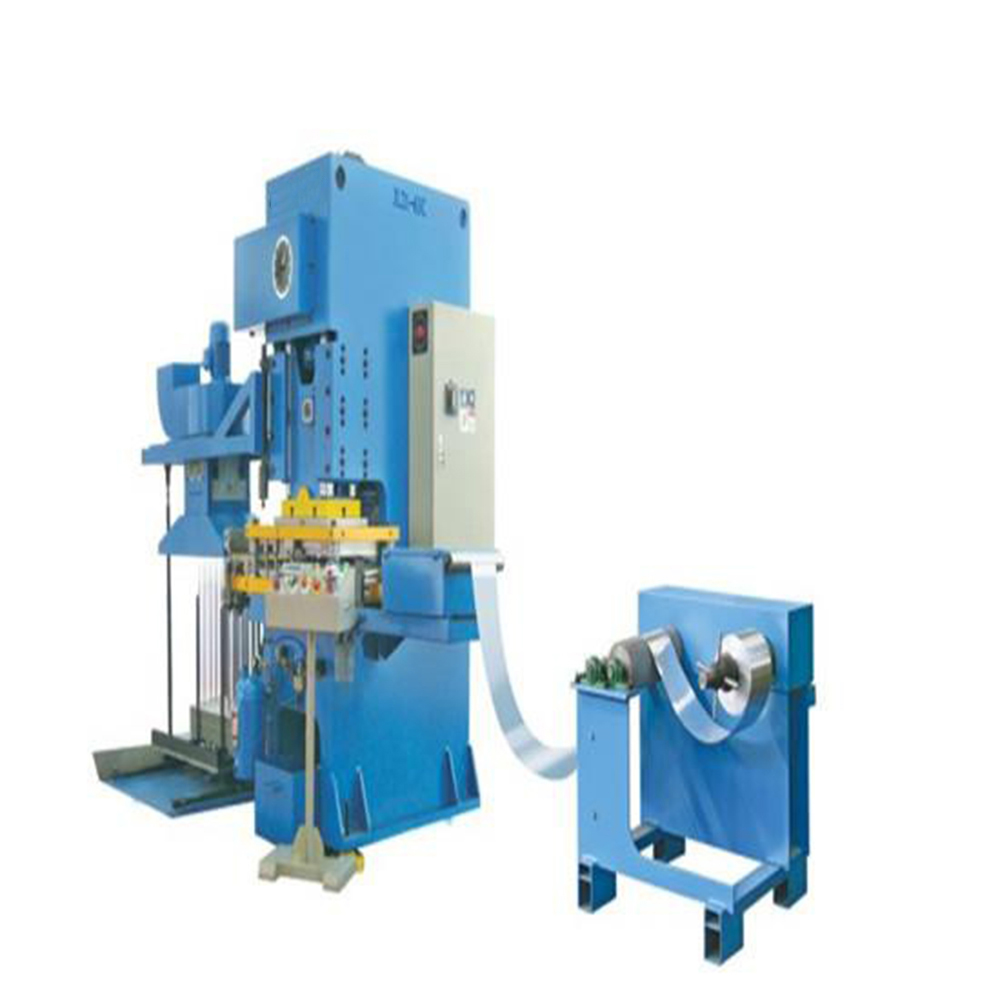

Picture Display
Main Parts Brand
（1）valve of clutch MAC
（2）electromagnetic valve FESTO
（3）oil mist valve SMC
（4）Clutch-brake China
（5）PLC OMRON
（6）Cam switch OMRON
（7）button Schneider
（8）contactor ABB
（9）lubrication pump Yongjia Lub
（10）display unit Delta
Main Description
Be equipped with moving scrap box
Be equipped with 1P→2Pfunction
Be equipped with lubrication unit, to prolong die’s life
Operation method: moving operation panel
Decoiler
Type: Conicity distended type
Material: Aluminum Coil
Max. Outer Diameter of Coil: Φ850 mm
Inner Diameter of Coil: Φ75±5 mm
Max. width of coil: 300mm
Feeding direction: from right to left
Oil tank and conducted coil-feeding
Type: oil-bathed type
Conductor type: retainer ring moving
Aluminum-coil suppressed type: roller
Vacuum sucker and collection unit
Type: sucked automatically by vacuum air with close/open
Sucking Adjustment: Adjust the plate of vacuum sucker’s exit
Sucking area: W300xL1000
Collection type: Double-seat moving unit
Collection moving: Driven by air cylinder
Size fins of collecting plate: W300xL1000
Collecting height of material: 600mm
